The module can withstand snow load up to 5400Pa, and wind pressure up to 2400Pa
Guaranteed output：0～+5W
High performance in low light conditions(cloudy weather,dawn and twilight)
Indepentdently certification by international certification authorities,including IEC61215,IEC61730,UL1703,TUV Safety Class II,CE
Iso9001、1so14001、 OHSAS18001 International Standard:Quality,Environment,and Occupational Health and Safety Management System
Parameters of Module
| Electrical parameters (Standard test condition) | HJT-72-430MHV | HJT-72-435MHV | HJT-72-440MHV | HJT-72-445MHV | HJT-72-450MHV |
| Maximum power-Pmax(Wp) | 430 | 435 | 440 | 445 | 450 |
| Maximum operating voltage-Vmp(V) Maximum operating current-lmp(A) | 40.62 | 40.82 | 41.02 | 41.22 | 41.42 |
| 10.59 | 10.66 | 10.73 | 10.80 | 10.87 | |
| Open-circuit voltage-Voc(V) | 49.21 | 49.41 | 49.61 | 49.81 | 50.01 |
| Short-circuit current-lsc(A) | 11.18 | 11.25 | 11.32 | 11.39 | 11.46 |
| Maximum system voltage-Vdc(V) | 1500 | 1500 | 1500 | 1500 | 1500 |
| Module efficiency(%) | 19.67% | 19.90% | 20.13% | 20.36% | 20.58% |
| Power tolerance(W) | 0/+5W | 0/+5W | 0/+5W | 0/+5W | 0/+5W |
Measured values under STC(temperature 25℃,air quality AM1.5, irradiance 1000W/㎡)
Physical Parameter
| Cell type | 166x83 mm Square monocrystalline silicon solar cells, a group of 144 cells(24x6) |
| Glass | 3.2 mm thick low-iron tempered glass with high light transmittance |
| Frame | Frame is made of anodized aluminum |
| Junction Box | IP Grade:IP68 |

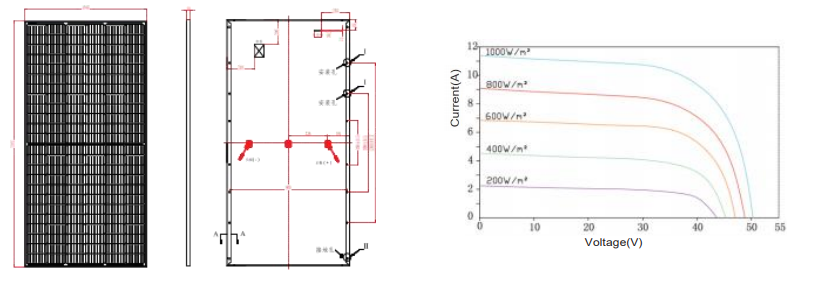

Mechanical Characteristics
| Dimension | 2102*1040*30mm |
| Mounting hole size | 400*998,990*998,1300*998mm |
| Cable Length | +250mm,-150mm |
| Weight | 24Kg |
Temperature Rating
| Nominal Module Operating Temperature(NMOT) | 42℃±2℃ |
| Maximum Power(Pmax) Temperature Coefficient(ō(%/C)) | -0.38 |
| Open-circuit voltage (Voc)Temperature coefficient(β(%/C)) | -0.29 |
| Short circuit current(Isc)Temperature | 0.04 |
Mode of Packing
| Flatcar | Pieces per case | 36 pcs/case |
| Quantity per pallet | 2 case/pallet | |
| 40 Feet Container | Pieces per case 36 pcs/case | 36 pcs/case |
| Quantity per pallet | 2 case/pallet | |
| Pieces per container | 792 pcs/40'HQ |
Limit Parameters
| Operating temperature | -40℃ to +85℃ |
| Maximum fuse current rating | 20A |
